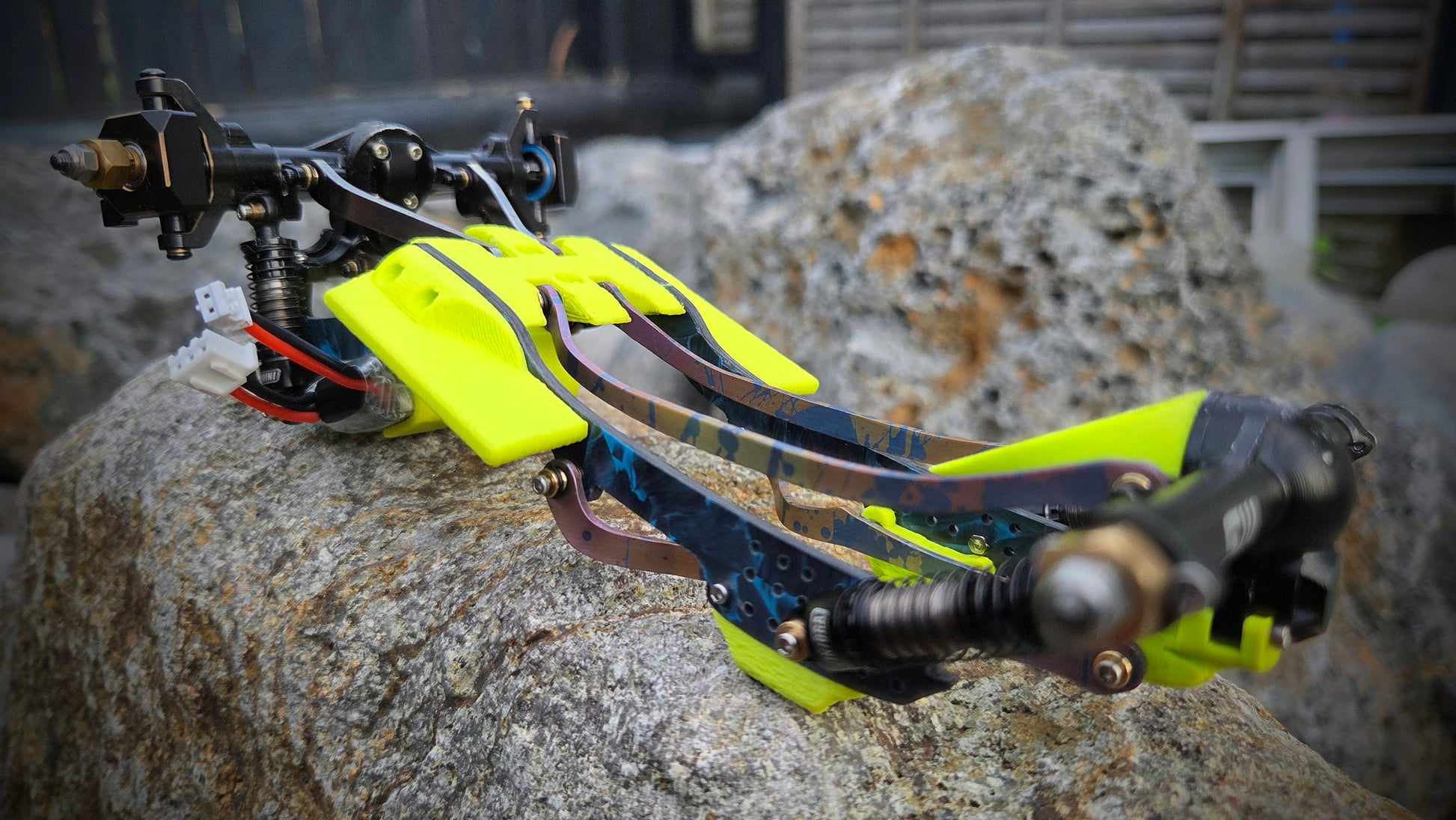

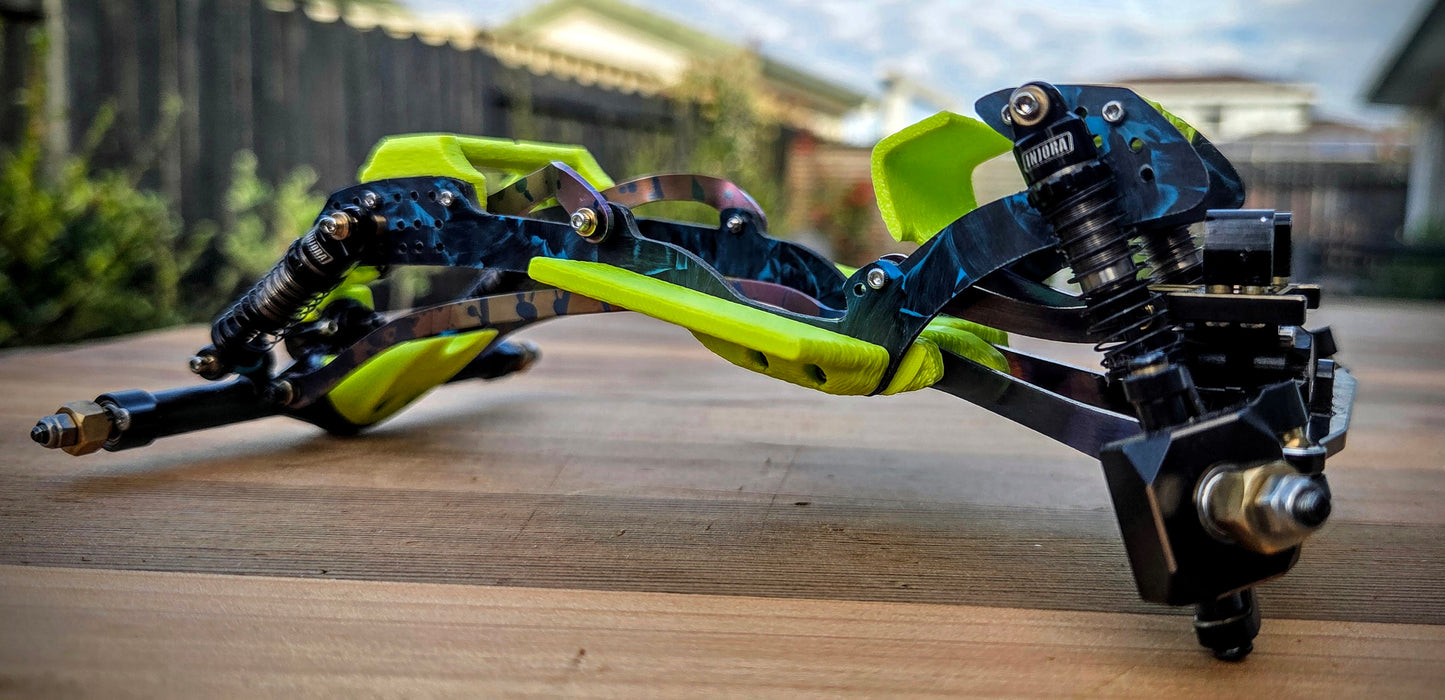

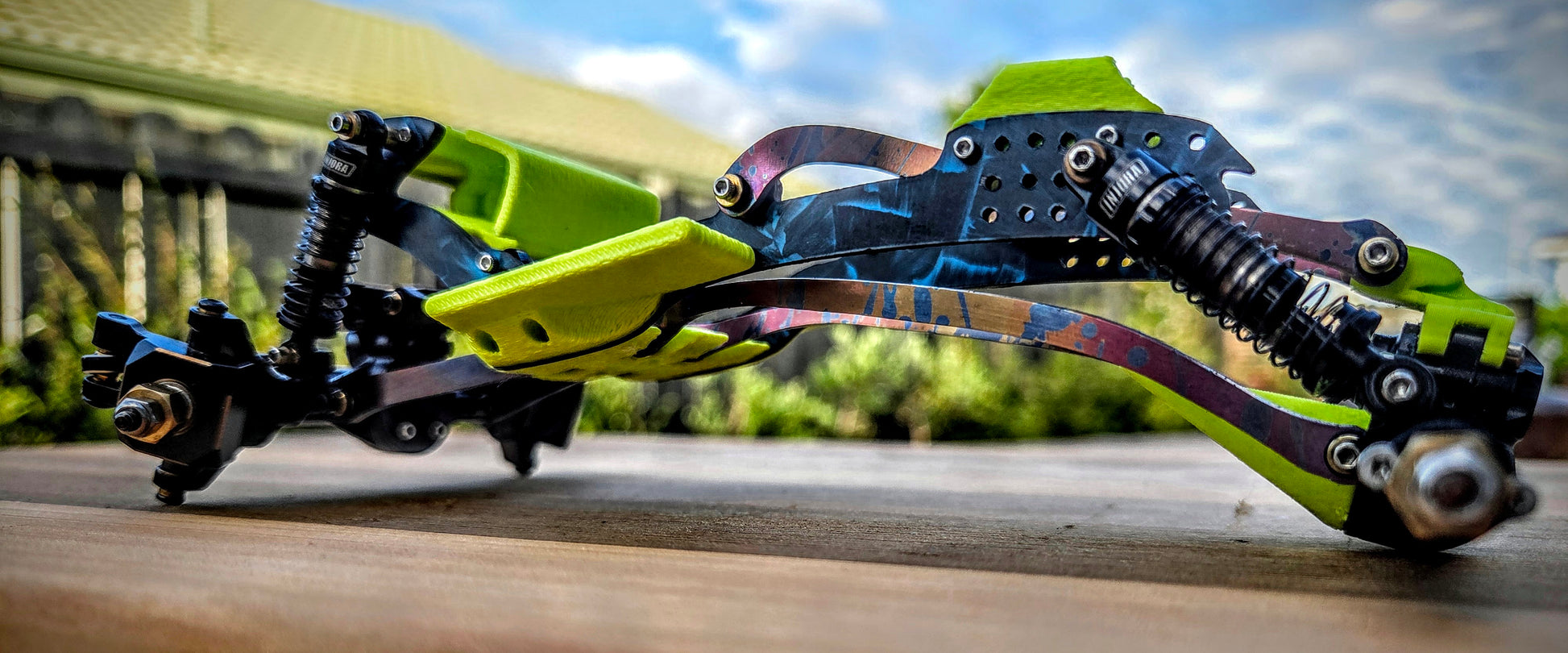

This is the Salty Micro Raven chassis kit.
#2 in the custom anodised Raven chassis series .
Specs:
155mm wheelbase. ( non carrier )
16 degree skid angle.

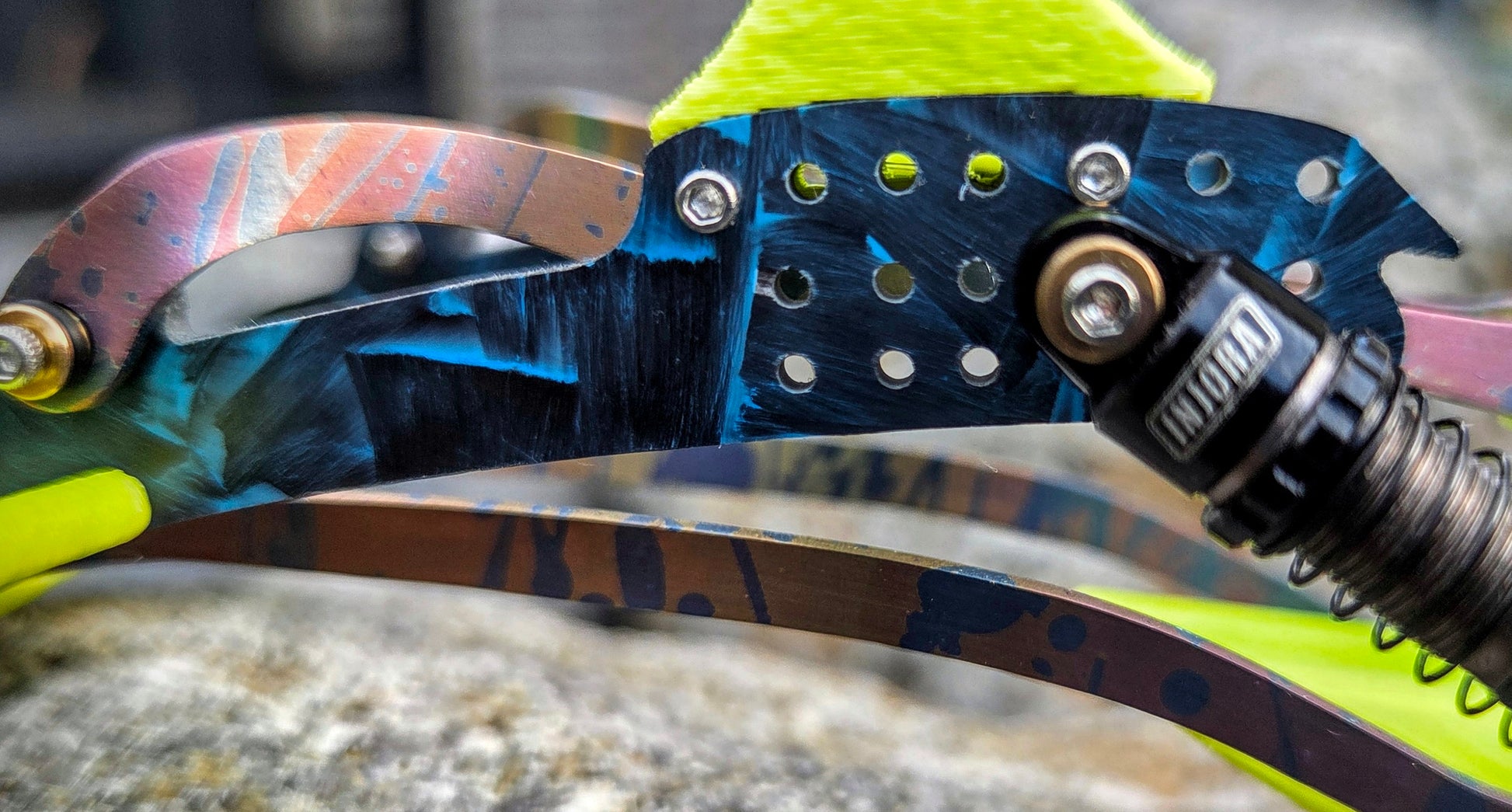

Custom anodised (in house)GR5 Titanium rear links, 316 SS front links.

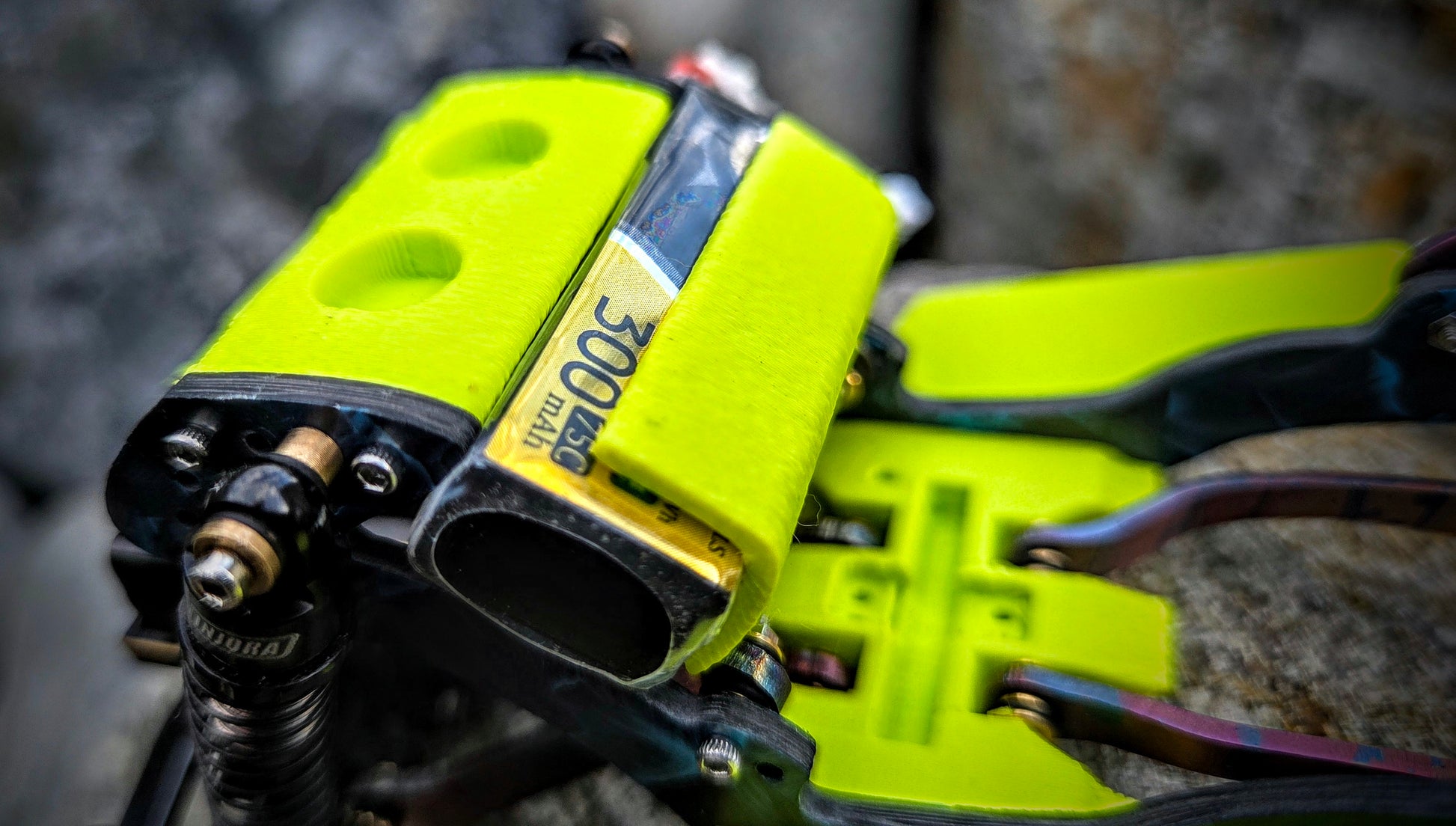

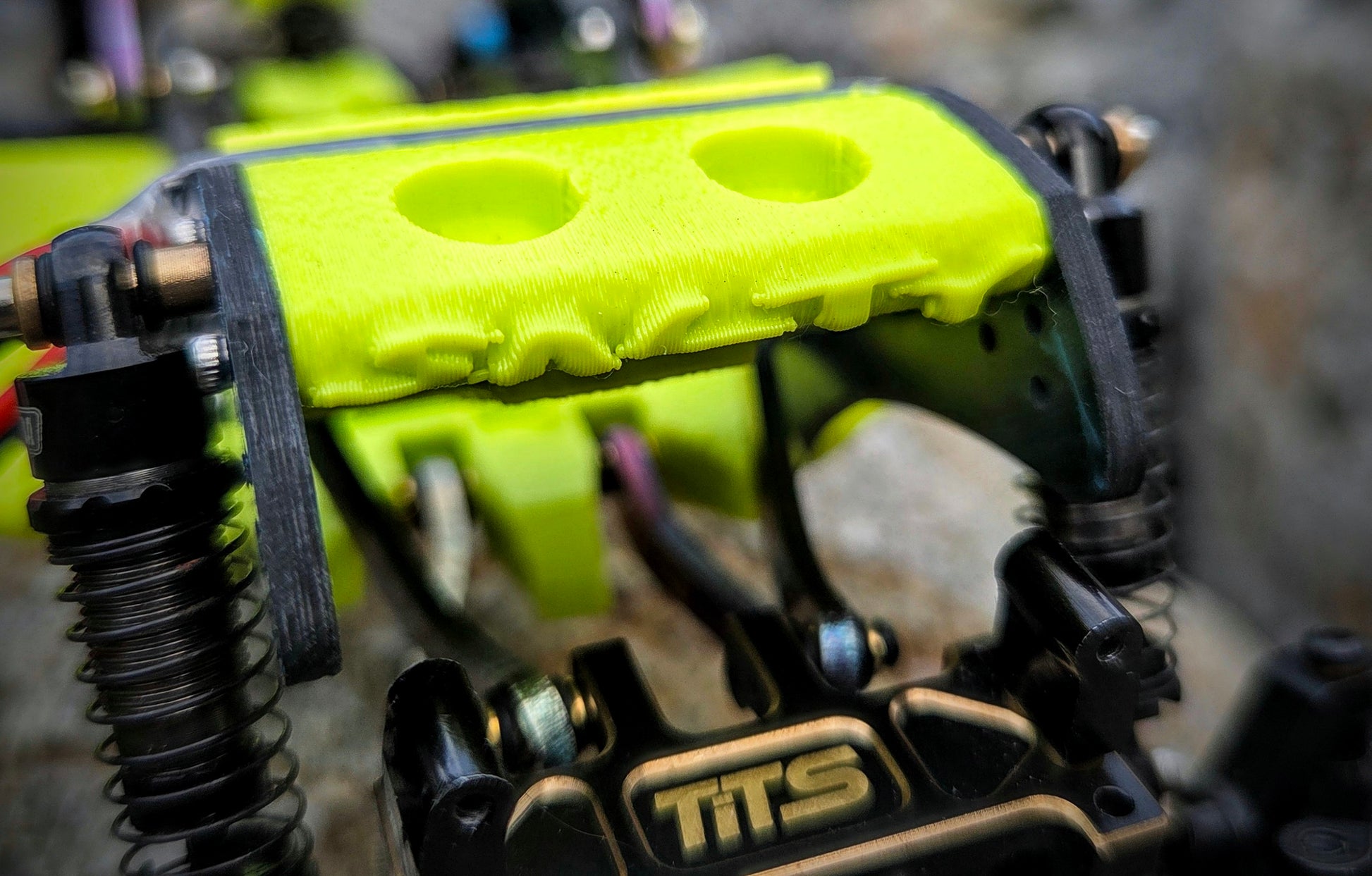

Front brace with incorporated battery tray/holder designed for the Tattu 300mah battery.

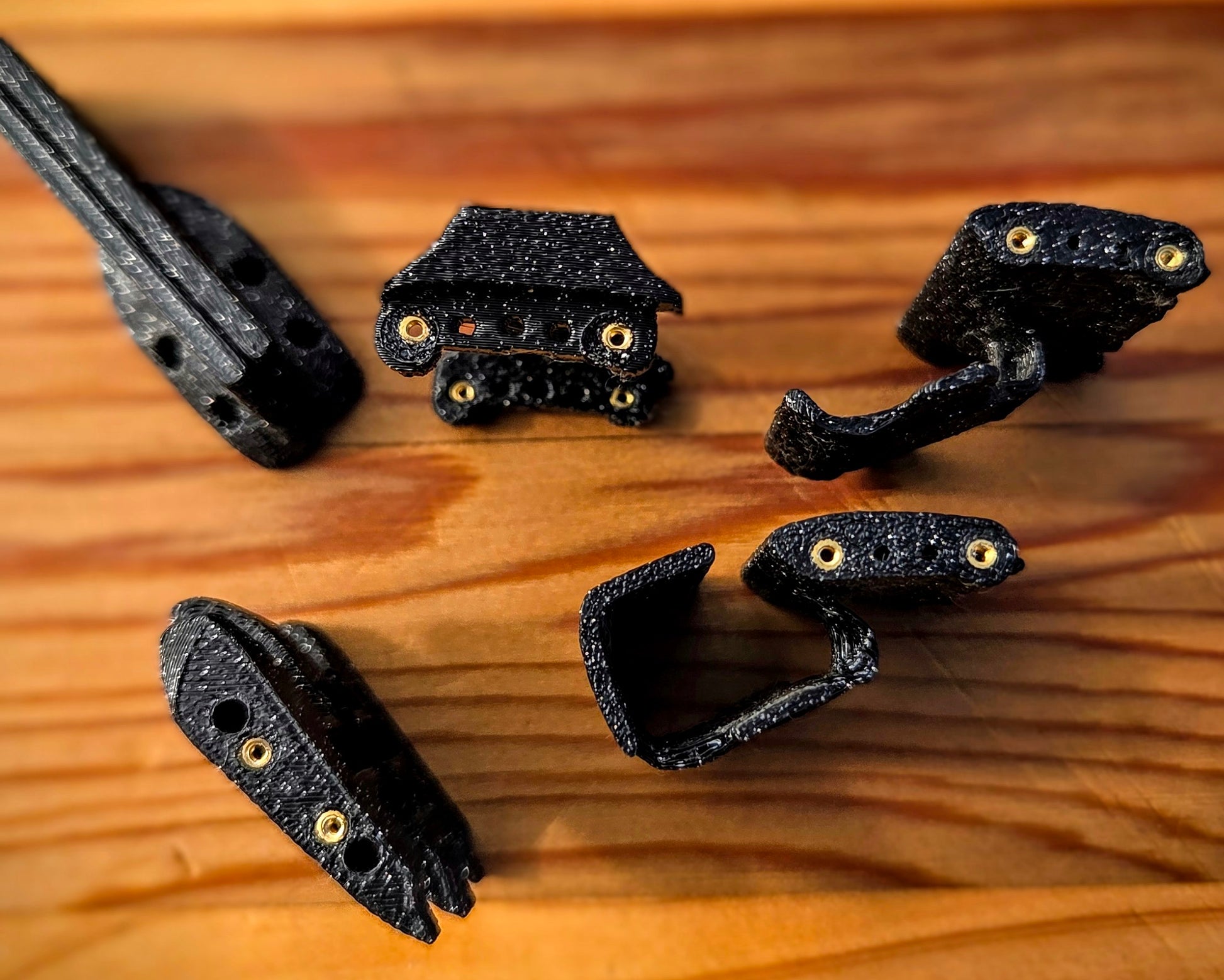

All plastics have heat set brass threaded inserts at all critical mounting points.
What's in the kit?

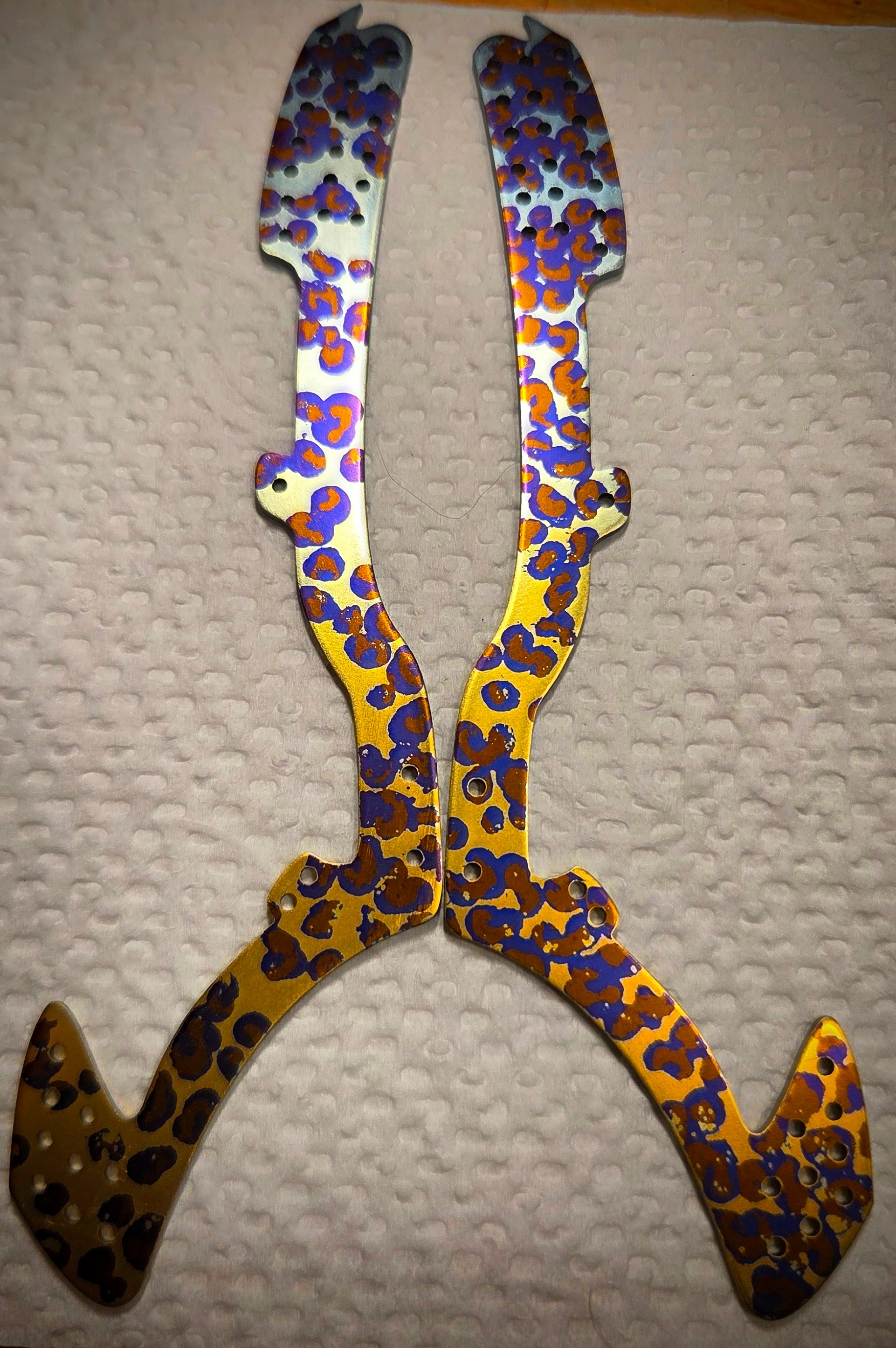

* GR5 Ti Chassis rails x2.

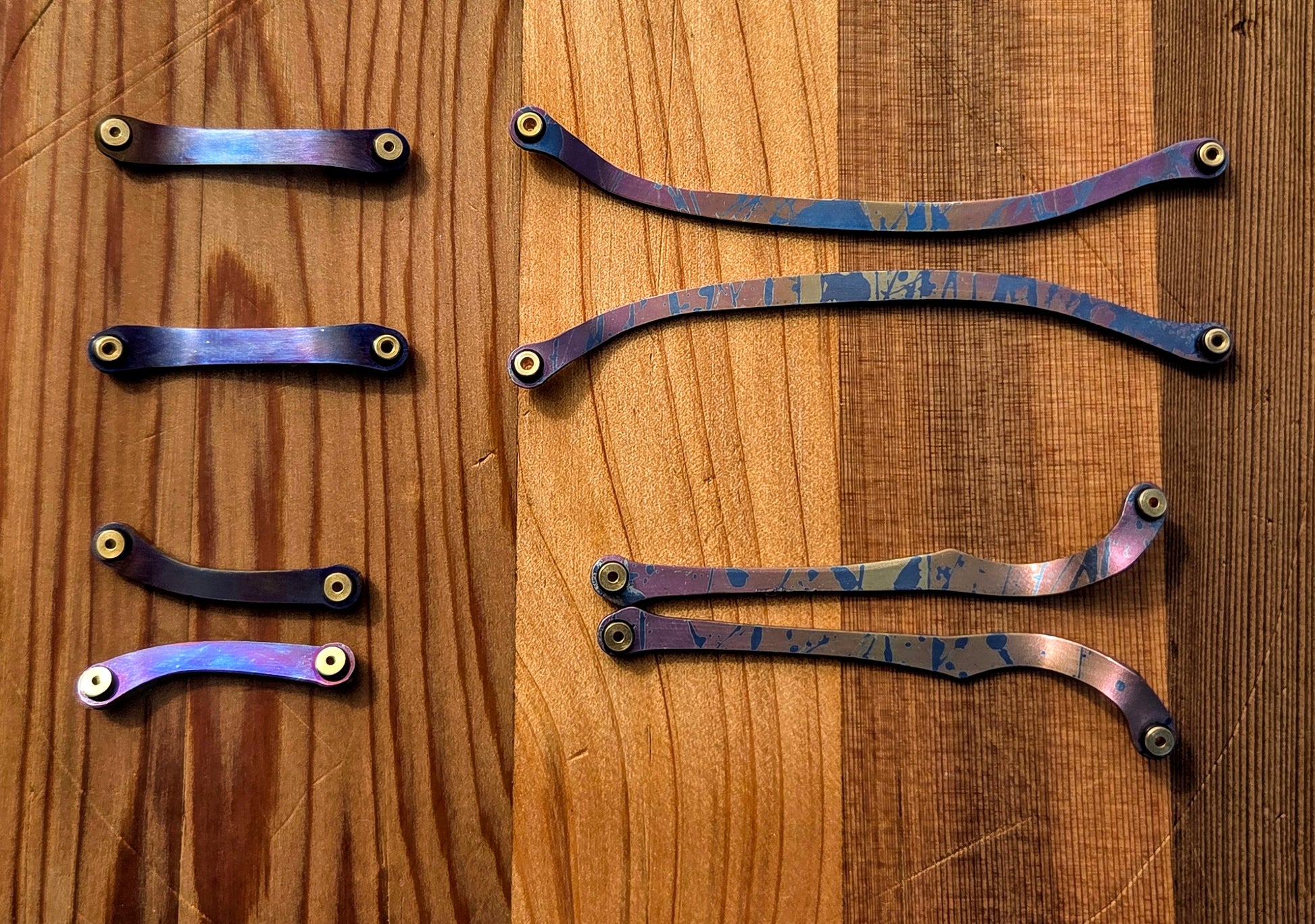

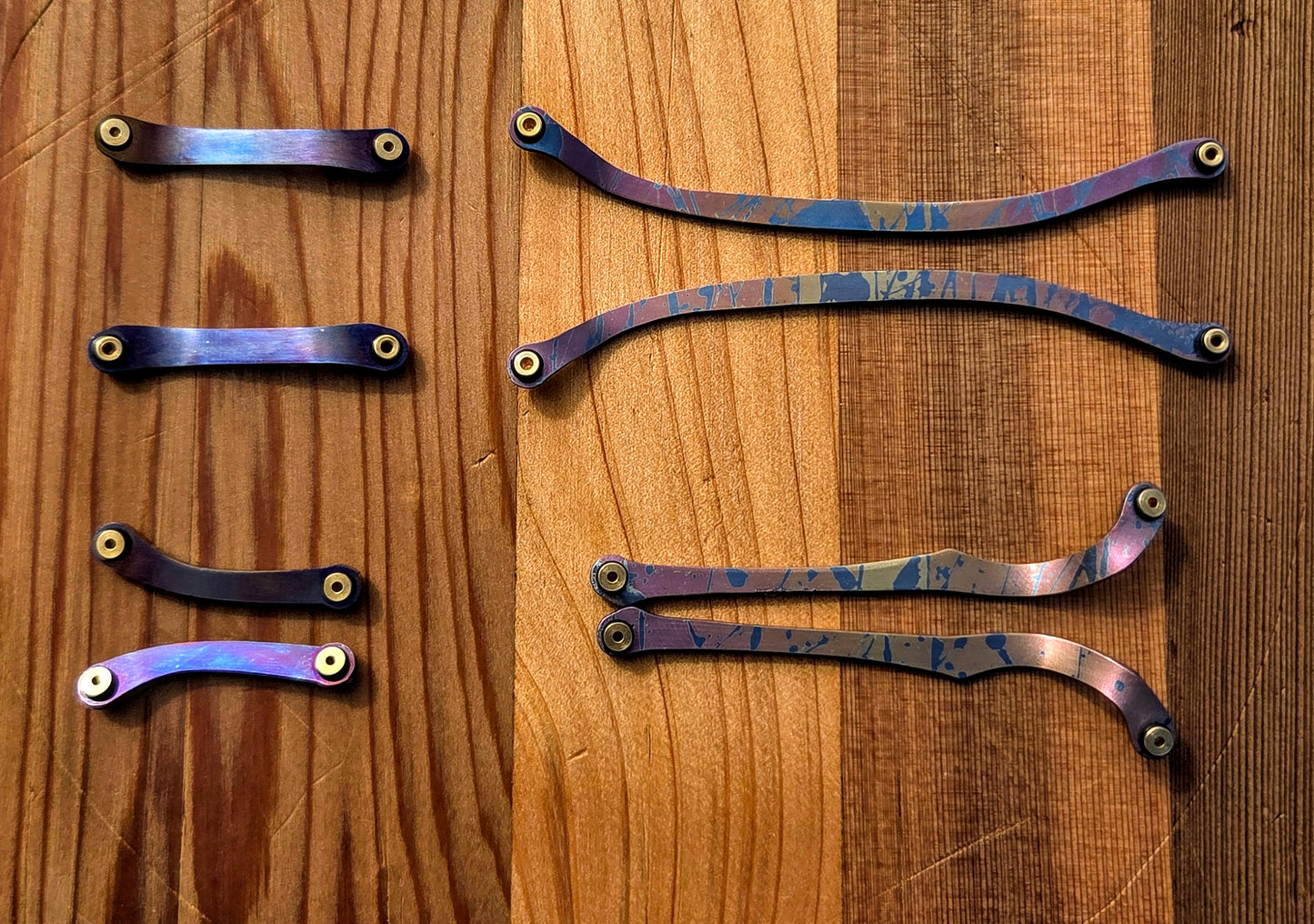

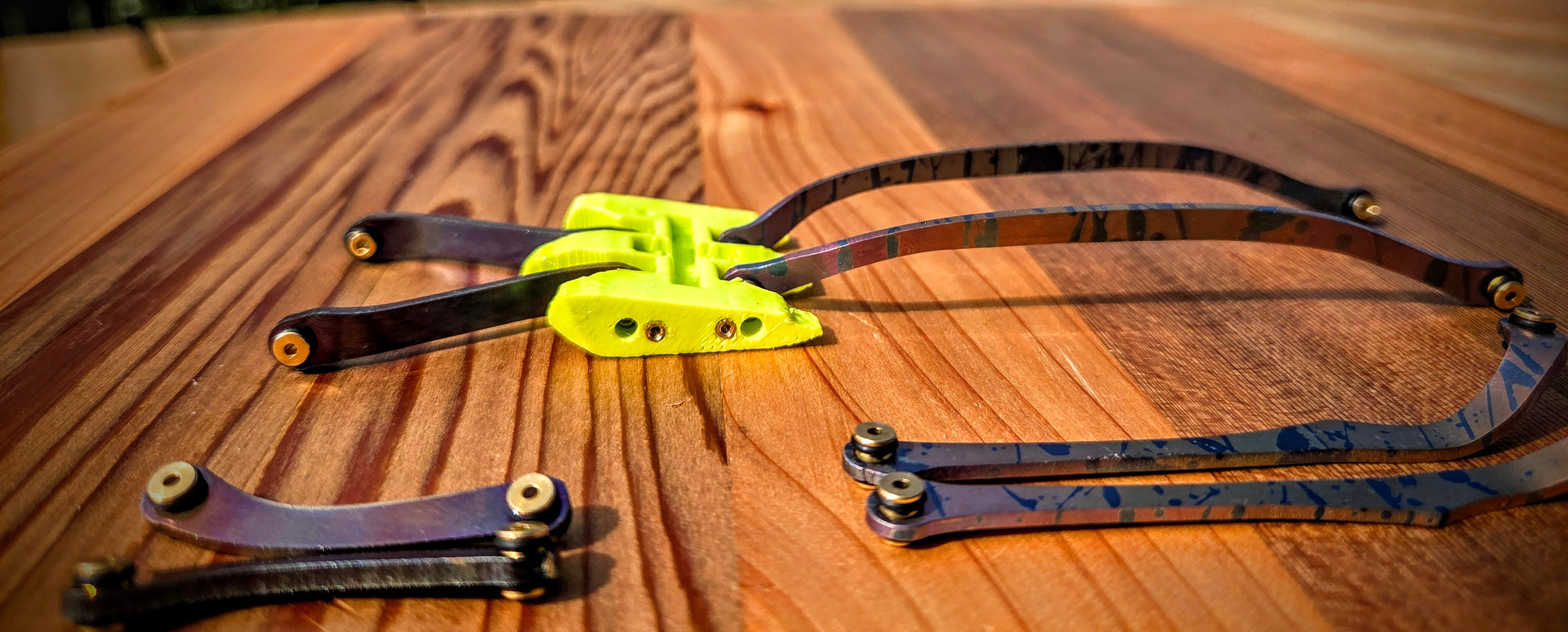

* Full link set Ti rear and SS front, 36.3mm eye to eye front lower 93mm eye to eye rear lower.

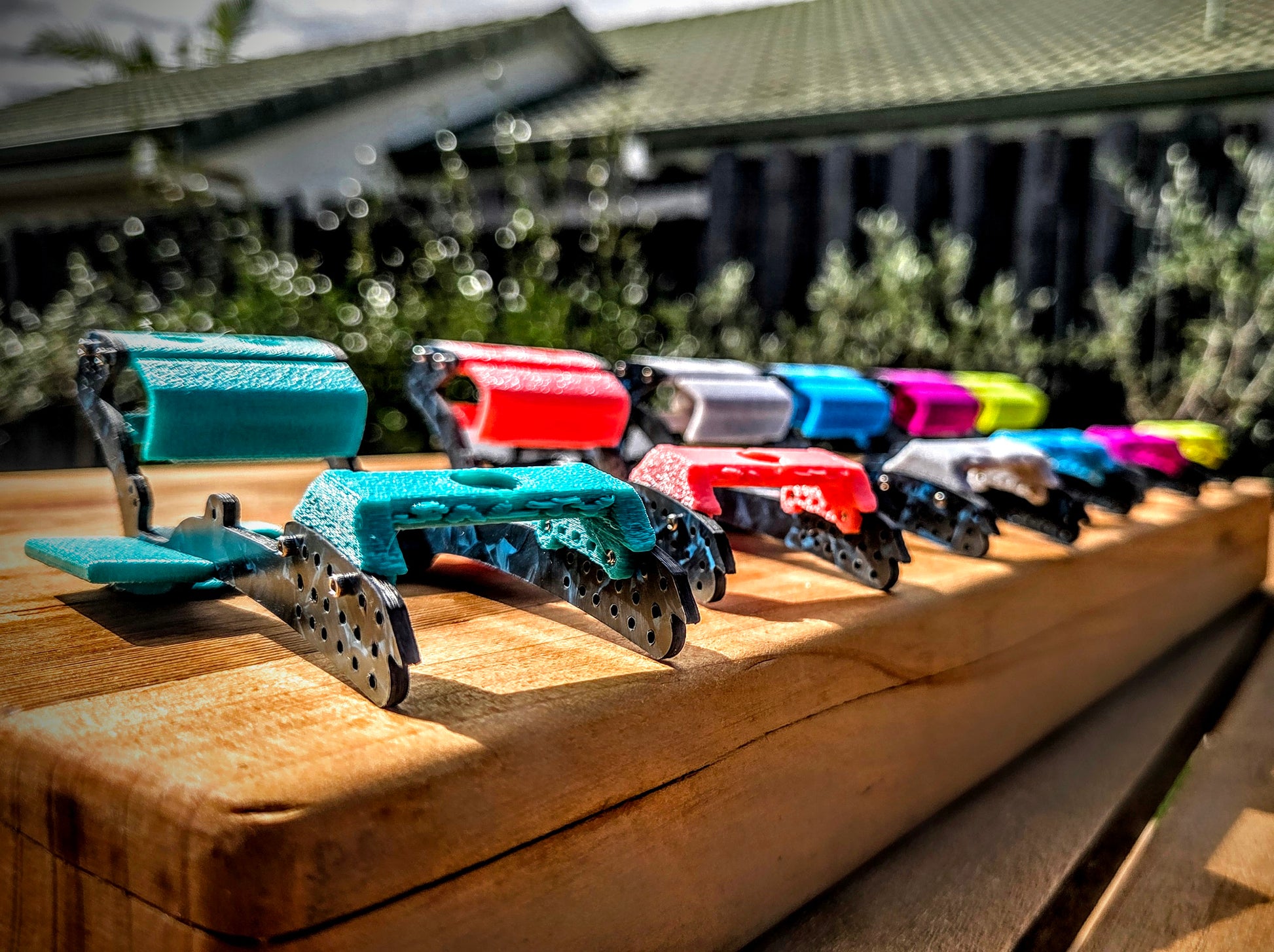

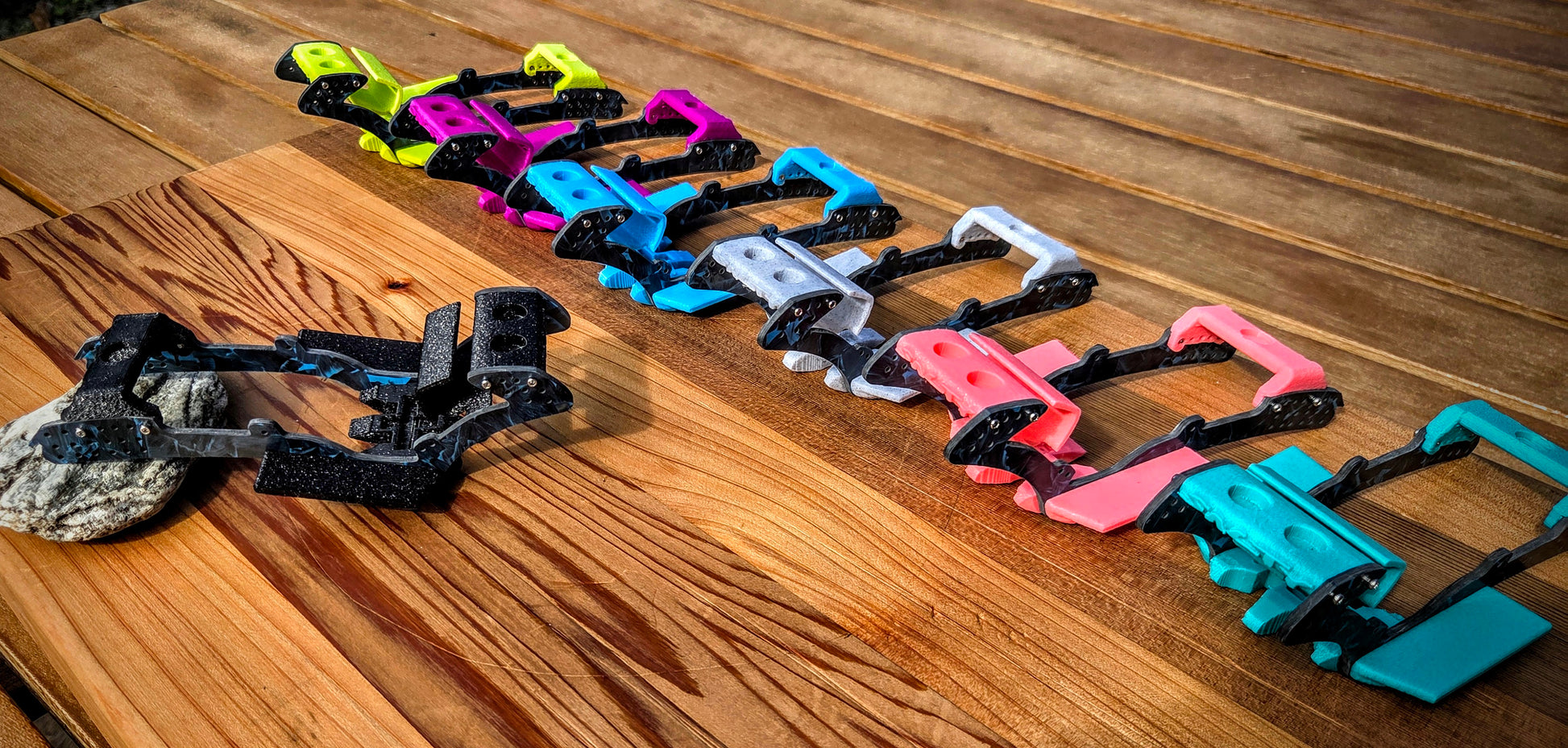

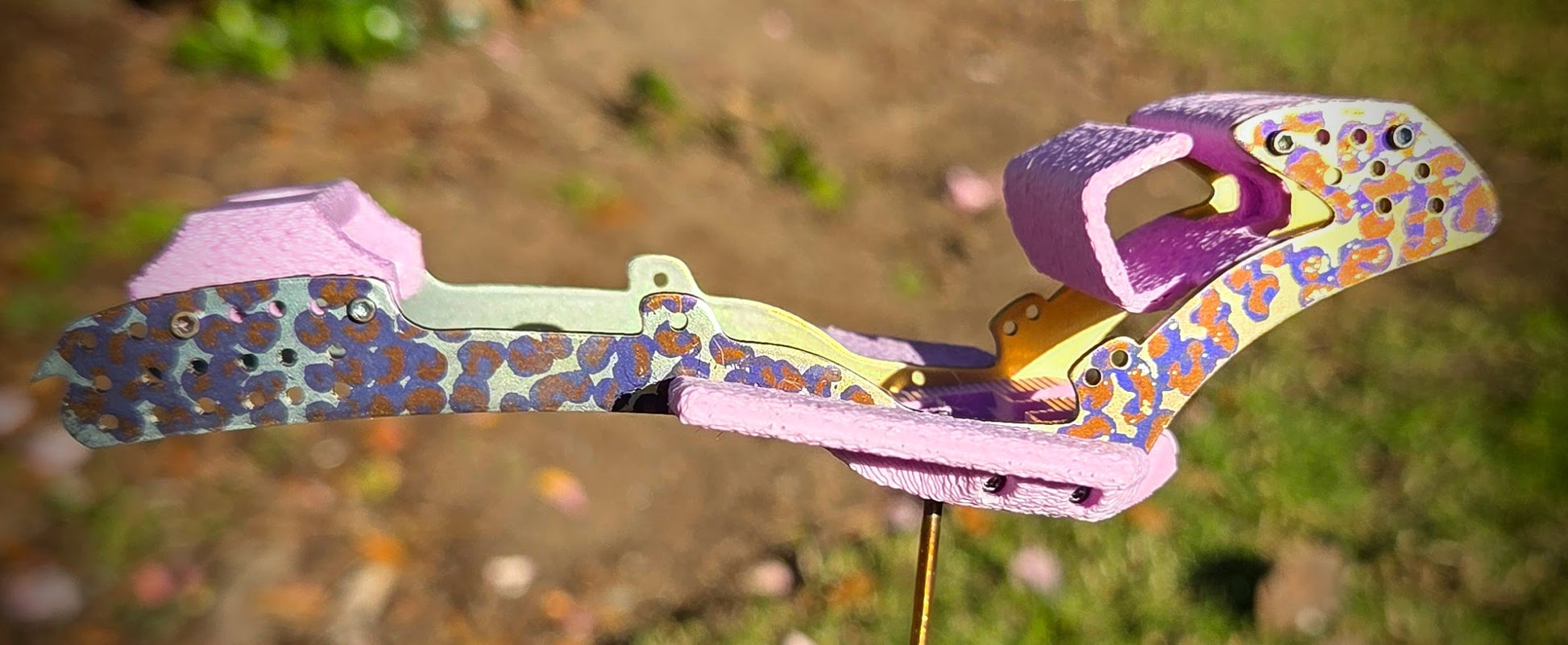

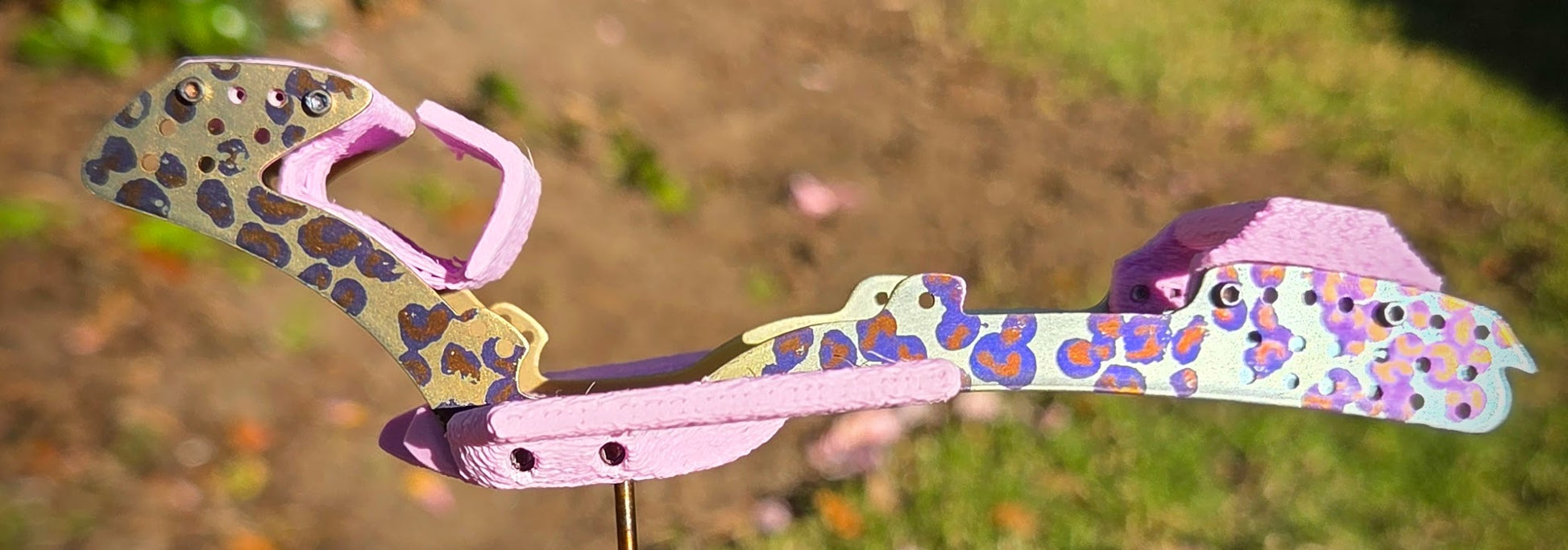

*** The "Cheetard" will come with the pictured Lilac plastics. All kit plastics are now printed in PETG, any previous colours printed in PLA-+ / PRO have been discontinued.
Kit may come with a secondary set of alternate colour plastics selected carefully by myself to match the frame.
* Tattu300 front mount x1.
* universal front mount x1.
* rear mount x1.
* sliders.
* Skid plate.

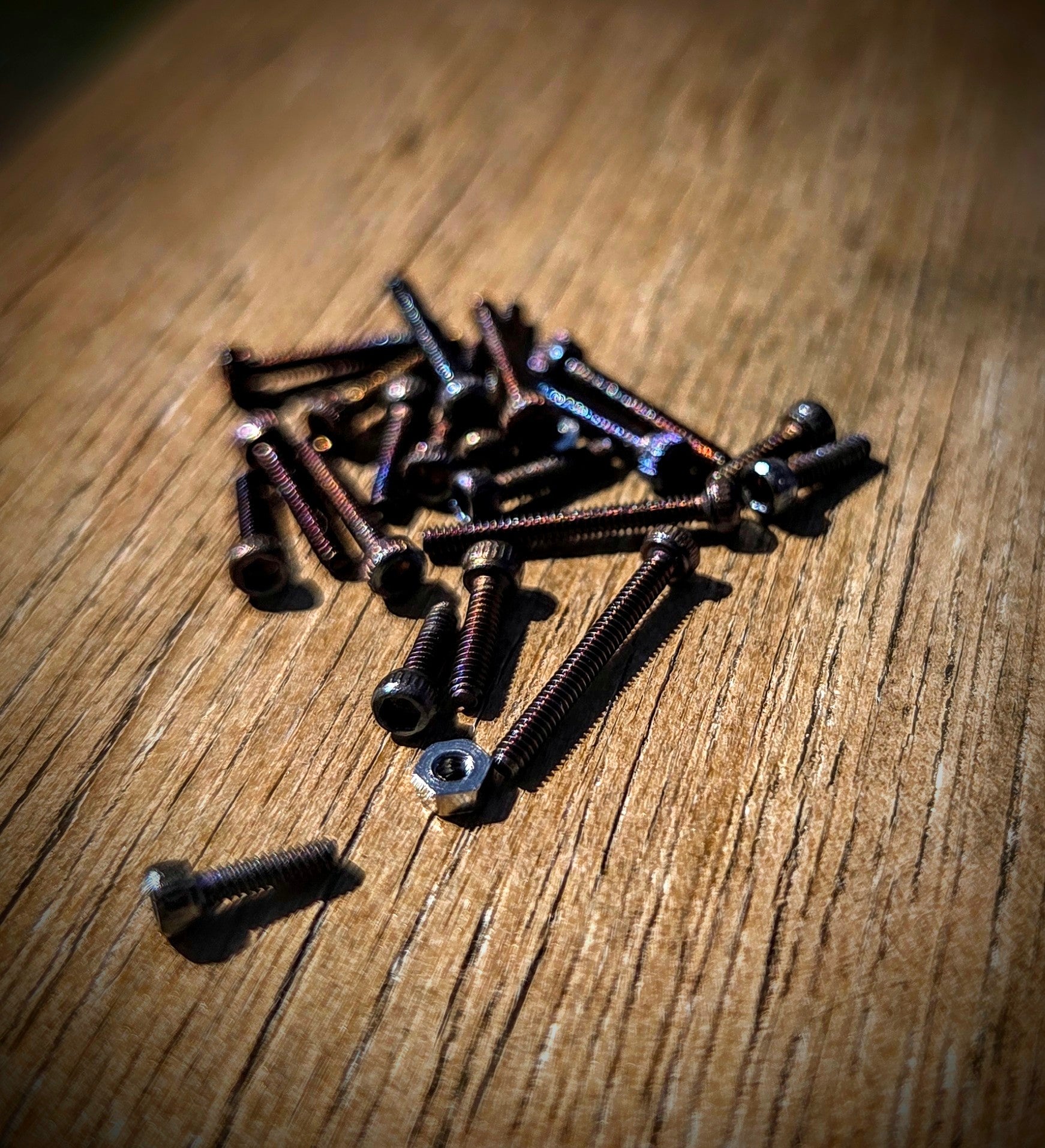

* hardware set: heat anodised ss screws 5,6,8,10,12mm 4x each and 4x M1.4 nuts.8x N52 magnets for body mounting. Brass link ball and O ring set.
*Screw locations*
4mm rear brace.
5mm front brace.
6mm through slider- rail-into skid plate.
10mm lower link to skid plate.
12mm upper link to chassis rail ( use nuts here ).
Notes.
DO NOT OVER TOURQUE SCREWS !!!!
Free ( shipping cost required ) replacement warranty ( applies to 3d printed plastic parts only )
Please feel free to reach out to me with any questions on my Instagram @salty-micro
Recommended driveshafts, Meus cut to lengths or Injora D-hole Deadbolt front and Gladiator rear.
*** Special thankyou to DJ at RC Wheelshop USA did a great job of cutting the Carbon,Titanium and Stainless steel! I am proud to support small businesses in our amazing 24th scale community! ***
